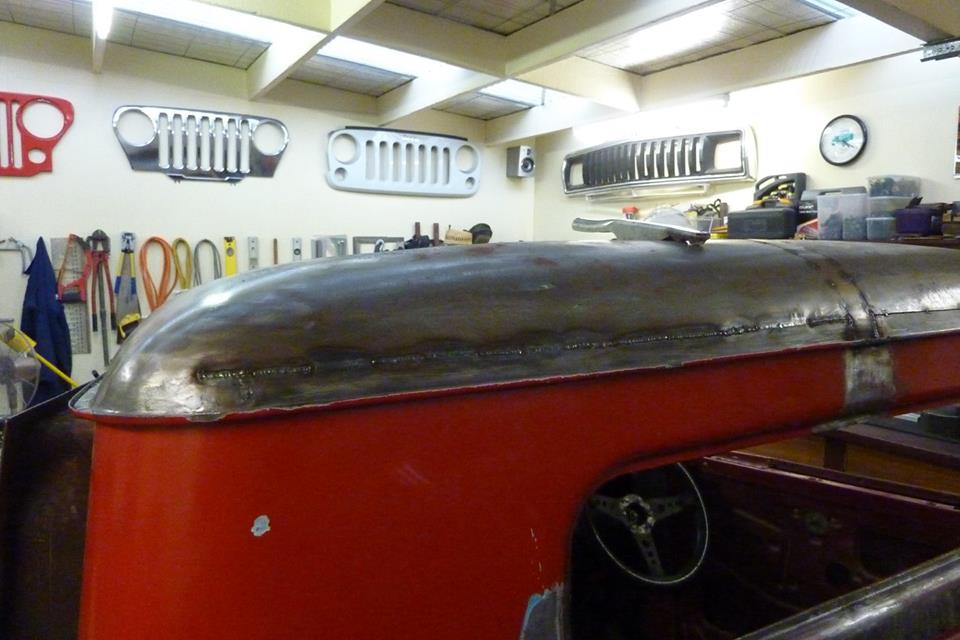

Hard to tell where the big gaps were and cleaned up well too.

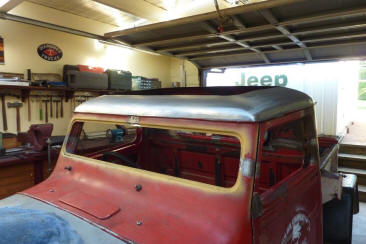

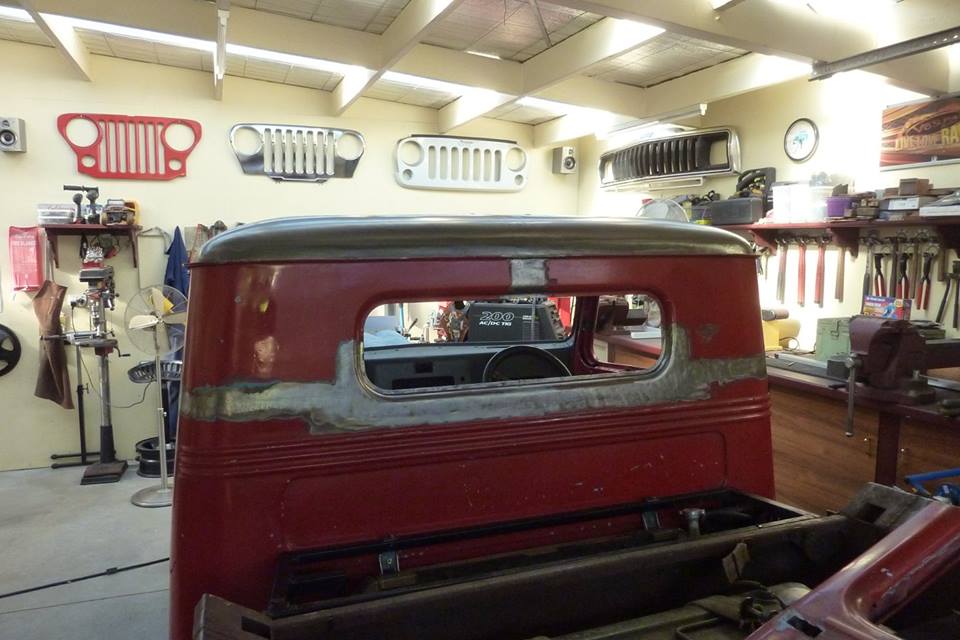

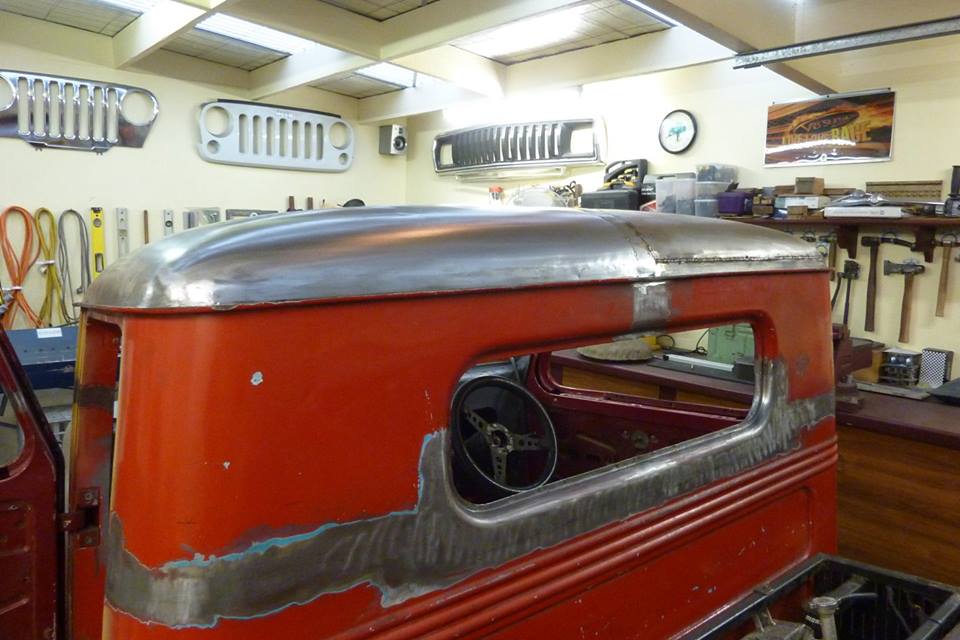

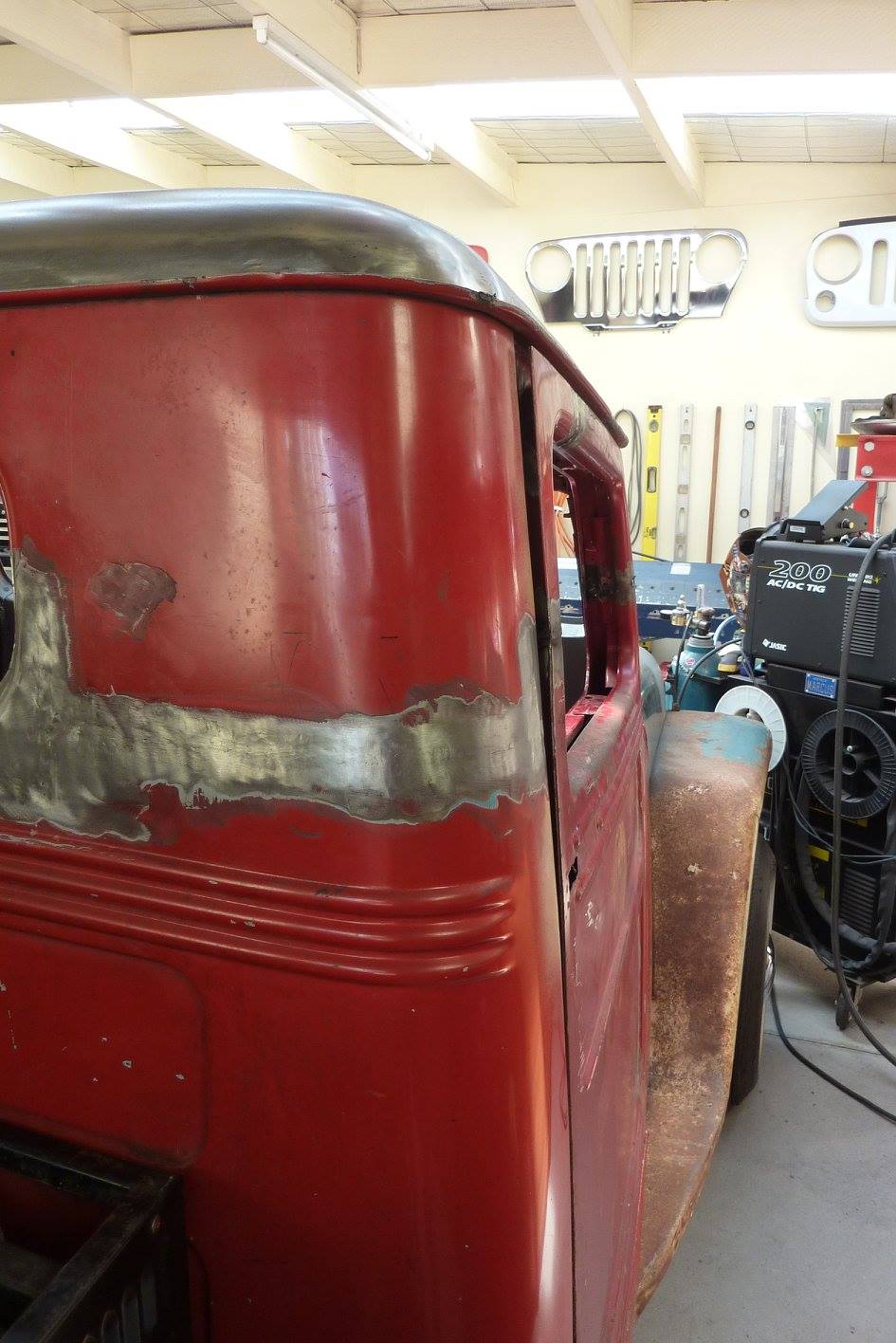

Front is not sitting too badly considering the gaping hole gives no support at all right now! Finished the rear as well and took out some of the high crown it had to better suit an insert later.

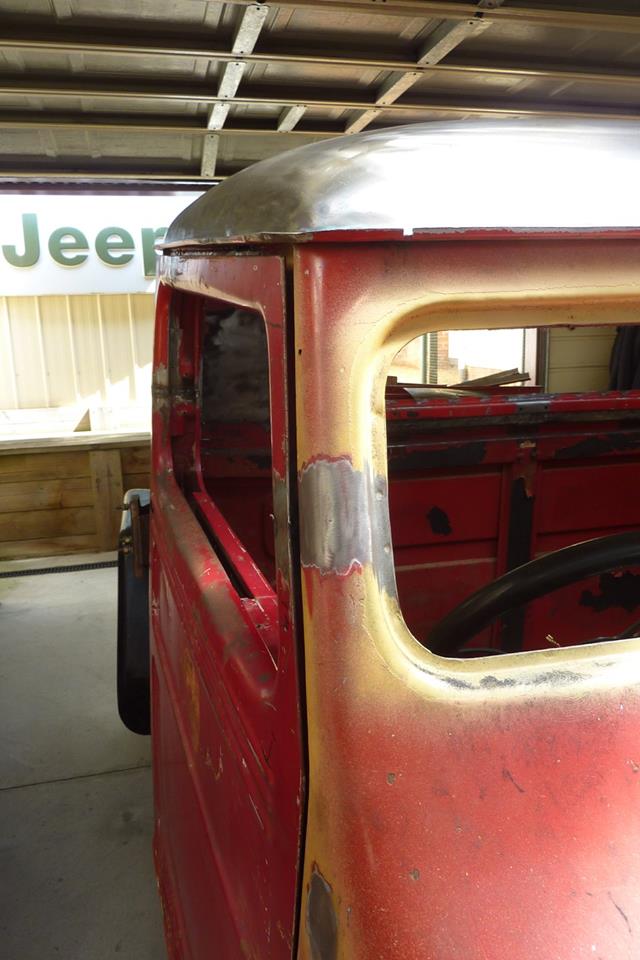

After doing all the adjusting I could on the hinges and forcing the top of the frame over, it was still hanging outwards at the top if the rest of the door was in line. The front was the same although not as bad.

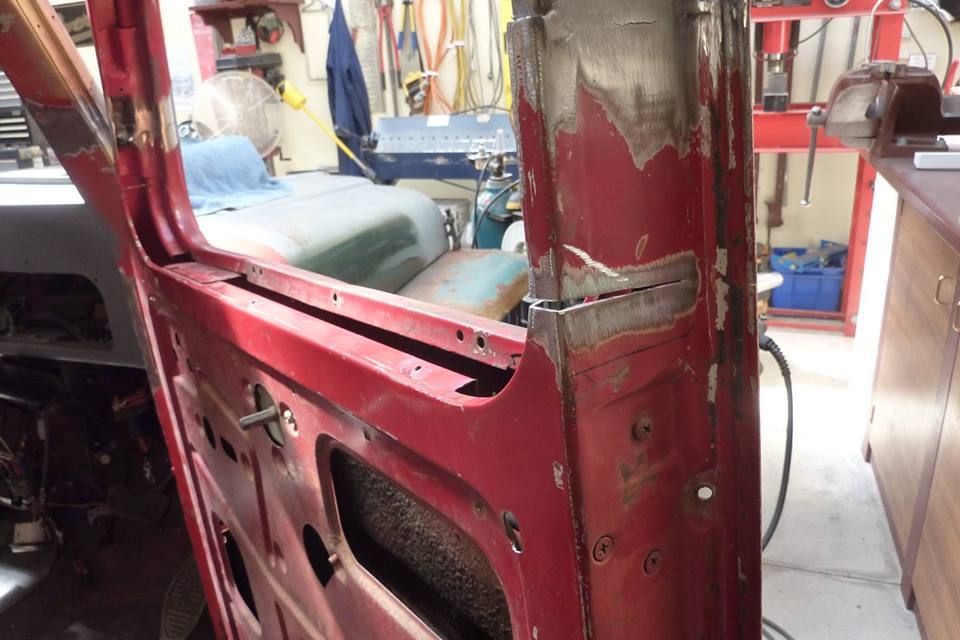

A wedge was cut into the frame where the bend was needed. Pushed over and tacked. Then checked to see if it was enough. Remember it will pull a few millimetres more with the weld shrinkage, so allow for that to save stretching the weld afterwards.
